Michiana Building Supplies, Co.
Premium Painted Galvalume® Panel Information and Prices
   Premium 29-Gauge and 26-Gauge Painted Galvalume® Steel Panels featuring the Millennium® 3000 paint system.
   40 year non-prorated finish warranty plus a 25 year corrosion warranty.
   Trim and Fasteners are also finished with the Millennium® 3000 Paint System in all panel colors.
   7 panel profiles are available: Imperial Rib®, Ameri-Drain®, Regal Rib®, Rugged Rib®, Monarch Rib®, 7/8" Wide Rib® and Perma Clad®. Panels are 38 inches wide and cover 36 inches.
   Delivery available Nationwide. 		For Ordering, Questions and Help Estimating:

Now On Sale!
Premium 29-Gauge
Painted Galvalume®
$72.32 per square
$2.19 per linear foot
 40 Year Warranty
18 Colors
Panel Length Price
8 ft $17.52
10 ft $21.90
12 ft $26.28
14 ft $30.66
16 ft $35.04
Premium 26-Gauge
Painted Galvalume®
$89.09 per square
$2.82 per linear foot
 40 Year Warranty
8 Colors
Panel Length Price
8 ft $22.56
10 ft $28.20
12 ft $33.84
14 ft $39.48
16 ft $45.12
29 Gauge Economy Panel
Painted Galvanized
$62.85 per square
$1.99 per linear foot
 10 Year Warranty
9 Colors
Panel Length Price
8 ft $15.92
10 ft $19.90
12 ft $23.88
14 ft $27.86
16 ft $31.84
Panels lengths above are pricing examples , we can custom cut lengths from 4 feet to 40 feet in ¼ inch increments, for no additional charge. Panel lengths under 4 feet add $1.00 per panel cut charge. Saves time and money by greatly reducing job-site cutting and waste.
Premium 29-Gauge Painted Galvalume®
Trim and Fastener Prices are listed below 		Posted prices should
be good thru July 17th 2009
Premium 29-Gauge
and 26-Gauge Painted Galvalume®
    Premium Painted Galvalume® panels will give your building the attractive lasting quality you demand from a steel panel. Panels are manufactured using the Millennium® 3000 Paint System. A steel substrate with a Galvalume® coating as opposed to straight galvanized.
   The Galvalume® coating combines aluminum, silicon and zinc to make the steel substrate have superior corrosion resistance.

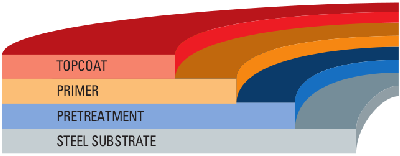

   Before the paint is applied to the Galvalume® coated steel, a pretreatment of chrome oxide is applied; which also inhibits corrosion and promotes adhesion.
   Next, a primer consisting of an epoxy modified polyester for improving adhesion and flexibilty is appied. And the final top coat is applied consisting of 30% siliconized modified polyester, this minimizes chalking and fading.
Millennium® 3000 Features and Benefits
  • 29-Gauge Panel available in 18 colors
  • 26-Gauge Panel available in 8 colors
  • Minimizes chalking and fading
  • Galvalume® Substrate
    • Millennium® 3000 Paint System Warranty
  • Paint - Film integrity is covered for up to 40 years against cracking, flaking, chiping and peeling
  • Finish - Chalking resistance is covered for up to 25 years
  • Color - Fading resistance is covered for up to 25 years
  • Warranty Brochure - Please see the American Building Components Warranty brochure for specific details.
    •
    Easy instant
    Steel Package
    Estimates
       Need to Figure the Metal Roofing, Siding and Trim for your new Home, Pole Building or Work Shop? Want to see what it would cost to put new metal on the old barn?
    YOU CAN RIGHT HERE!! Using our Metal Roofing and Siding Estimator for an instant estimate on-line. It's Fast, It's Easy and it's FREE to use. And, it does not require a ridiculous amount of personal information to use it... CLICK HERE

    Painted Galvalume® Panels are manufactured by American Building Components. A provider of metal panels since 1908.
    Back to Top
    Product Guide
     For more information on Premium Painted Galvalume® product use, download the PDF Guide.
    CLICK HERE
    Premium Painted Galvalume® Panel Profiles
    Imperial Rib® is available at all Locations.
    Ameri-Drain®, Regal Rib®, Rugged Rib®, Monarch Rib®, 7/8" Wide Rib® and Perma Clad® profiles are manufactured at select locations only. These profiles may require additional lead time.

    To view the Premium Painted Galvalume® panel profiles in a web page, CLICK HERE
    To view the Premium Painted Galvalume® panel profiles in a PDF, CLICK HERE
    White Liner
    29-Gauge Painted
    Galvanized G-40
        White Liner 29-Gauge Painted Galvanized offers value in a clean white finish. Great for agricultural use and projects on a strict budget.
    Features and Benefits
  • 29-Gauge Panel
  • G-40 Galvanized
  • Value and Quality
  • No Warranty
  • White
    •
    How panels are priced
  • Panels are priced by the square.
  • 1 Square = 100 square feet of material.
  • Panels are 38 inches wide and cover 36 inches.
  • Panels can also be custom cut in 1/4 inch increments.
  • Panel lengths shorter than 4 feet add $1.00 per panel cut charge.
  • Panels over 40 feet long may require an additional handling charge.
    •
    Premium Painted Galvalume® Trim and Fastener Prices
    Description Skew Length Price
    8" Universal Ridge Cap LG-101 10 ft 6 in $20.49
    10" Universal Ridge Cap LG-101A 10 ft 6 in $25.35
    12" Universal Ridge Cap LG-101B 10 ft 6 in $27.72
    14" Universal Ridge Cap LG-101C 10 ft 6 in $29.49
    Eave Trim
    3 n X 3 in Single Angle     		MBS3X3SA 10 ft $12.77
    Rake and Corner Trim LG-113 10 ft 6 in $17.34
      LG-113A 12 ft 6 in $24.33
      LG-113B 14 ft 6 in $28.16
      LG-113C 16 ft $31.43
    Inside Corner LG-115 10 ft 6 in $20.78
    Shingle Rake Trim LG-116 10 ft 6 in $15.00
    One Piece Overhead Door Trim MBSOHDT 10 ft 2 in $27.66
      MBSOHDT 11 ft 2 in $30.38
      MBSOHDT 12 ft 2 in $33.09
      MBSOHDT 13 ft 2 in $35.82
      MBSOHDT 14 ft 2 in $38.54
      MBSOHDT 15 ft 2 in $41.26
      MBSOHDT 16 ft 2 in $43.97
    J Channel (7/8 in throat) LG-123 10 ft 6 in $7.39
      LG-123A 16 ft $13.33
    J Channel (1 in throat) LG-124 10 ft 6 in $7.69
      LG-124A 16 ft $13.47
    Beaded Fascia LG-145 10 ft 6 in $12.06
    1 in x 2 in Univerisal L Flashing LG-127 10 ft 6 in $6.92
    1.5 in x 2 in Univerisal L Flashing LG-127A 10 ft 6 in $7.06
    2 in x 2 in Univerisal L Flashing LG-127B 10 ft 6 in $7.56
    3 in x 2 in Univerisal L Flashing LG-127C 10 ft 6 in $8.86
    Base Trim (Rodent Guard)
    1 in wide     		LG-110 10 ft 6 in $9.58
    Base Trim (Rodent Guard)
    1.5 in wide     		LG-110A 10 ft 6 in $12.68
    Wainscote Trim LG-170 10 ft 6 in $9.99
    12 in Steel Soffit - Solid LG-140 12 in x 12 ft 6 in $19.11
    12 in Steel Soffit - Vented LG-142 12 in x 12 ft 6 in $19.11
    12 in Aluminum Soffit - Solid LG-141 12 in x 12 ft 6 in $19.11
    12 in Aluminum Soffit - Vented LG-143 12 in x 12 ft 6 in $19.11
    Steel Soffit available in all Millennium® 3000 Colors
    Aluminum Soffit available in White or Bronze only.
    Fastener Prices
    Description Skew Length Price
    250 ct Hex Head Coated Screws
    with Neoprene Washer     		#8A 1 in $16.25
      #8 1.5 in $17.50
      #8B 2 in $20.00
      #8C 2.5 in $21.25
      #8D 3 in $26.00
    Posted prices should be good thru June 19th 2009.
    		Trim Use
    Detail Drawings
        Here are drawings that show how steel trim is generally installed.
    To view the drawings in a Web Page - CLICK HERE
    To view the drawings as a PDF file - CLICK HERE

    Help with Measuring
       When ordering your steel package you will need to provide a few key measurements. Here are drawings that help with measuring.
    To view the drawings in a Web Page - CLICK HERE
    To view the drawings as a PDF file - CLICK HERE

    Click Here to download Adobe Reader, a PDF file viewer made by Adobe.
    This page best with

    We also accept
    Checks By Fax®
    Back to Top
    Delivery Coverage Area
    DELIVERY CHARGES NOT INCLUDED:  We at Michiana Building Supplies make every effort to keep delivery charges reasonable and competitive. Deliveries are primarily made by flat-bed semi truck. Boom and fork-lift off loading is available in select areas for an additional charge. Delivery charges are based on order size, delivery location and job-site accessibility. We always disclose delivery charges before you place your order.
    Galvalume® This 55% Al-Zn coated steel product is manufactured and sold under the Galvalume® trademark by Bethlehem Steel Corp., Dofasco Inc., National Steel Corp., U.S. Steel Group of USX Corp., and Wheeling-Nisshin, Inc. It is also manufactured and sold by Steelscape Inc. under the ZINCALUME® trademark, by Industrias Monterrey S.A. under the ZINTRO-ALUM® trademark and by Galvak, S.A. de C.V. under the GALVAL® trademark. GALVALUME® is an internationally recognized and registered trademark of BIEC International Inc., and some of its licensed producers, and a trademark of Dofasco Inc. in Canada.
